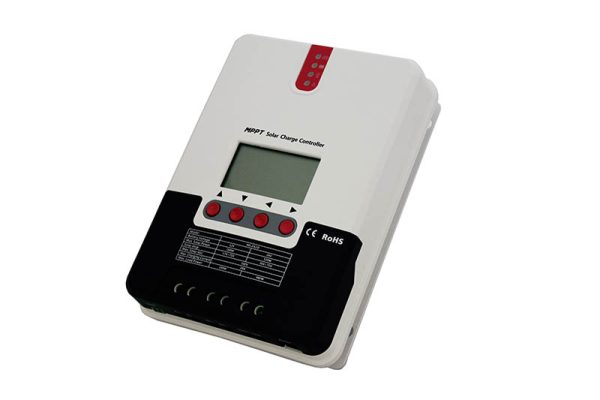

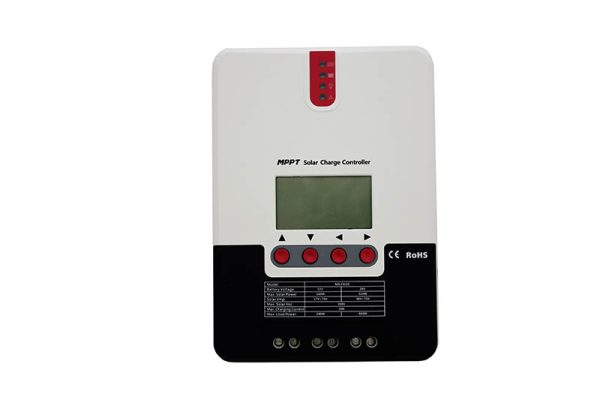

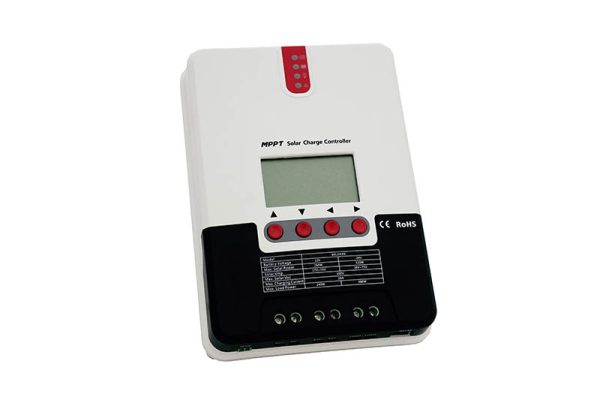

Solar charge controller MPPT 2420
- System voltage: 12V/24V automatically
- No-Load Losses: From 0.7 to 1.2 Watts
- Battery voltage: From 9 to 35 V
- Maximum voltage of solar modules: 100 V (+25°C); 90 V (-25°C)
- Voltage range: max. power: Battery voltage +2V~75V
- Charging current: 20 А
With advanced dual-peak or multi-peak tracking technology, the MPPT charge controller tracks the maximum power point even when the solar module is partially or fully shaded.
The controller is equipped with a current-limited charging mode. When the solar module power exceeds a certain level and the charging current exceeds the rated value, the controller automatically reduces the charging power and reduces the charging current to the rated level.
Charging options are available for different battery types.
The MPPT charge controller features the ability to track the maximum power point of the solar panel, which allows you to get up to 30% more energy from your solar module compared to PWM controllers.
| Weight | 1,4 kg |
|---|---|
| System voltage | 12V/24V automatically |
| Temperature compensation | -3mV/°C/2V (default) |
| Degree of protection of the case | IP32 |
| Overall dimensions | 210 х 151 х 59,5 mm |
| No-Load Losses | From 0.7 to 1.2 Watts |
| Battery voltage | From 9 to 35 V |
| Maximum voltage of solar modules | 100 V (+25°C); 90 V (-25°C) |
| Voltage range: max. power | Battery voltage +2V~75V |
| Charging current | 20 А |
| Load current | 20 А |
| Maximum capacity of capacitive load | 10,000 UF |
| Maximum power of solar modules | 260W/12V 520W/24V |
| Conversion efficiency | ≤98% |
| MPPT efficiency | >99% |
| Communication port | RS232 |
| Altitude | ≤3000 m |
