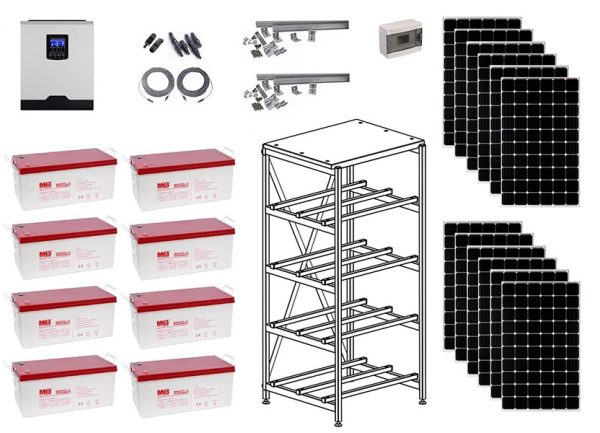

Solar power plant 5 kW/19200 Wh/3000 W
- Inverter VM 5000-48 (MPPT), 5000VA/5000W (Voltronic Power): 1 pc.
- Solar module 24V/250W mono: 12 pc.
- GEL battery 12V 200 Ah: 8 pc.
- Reinforced battery rack with crossbars for 8 batteries: 1 pc.
- Mounting solar modules on a flat surface: 1 set
- MC-4 connectors: 4 sets
Autonomous solar power plants are designed to supply energy to facilities where there is no connection to the grid or where it is unreasonably expensive.
Can be powered:
- Lighting system
- Refrigerator
- Boiler
- Water supply pump (up to 2000 W)
- Septic tank
- Washing machine
- Vacuum cleaner
- Electric kettle
- Microwave oven
- TV
- Satellite TV
- Laptop
- Computer
- Phone and tablet chargers
- Chargers for cordless tools
Read more
Technical specifications
| Inverter power nominal/peak | 5000 W / 10000 W |
|---|---|
| Battery type | GEL, AGM maintenance-free |
| Battery power reserve | 19200 Wh |
| Nominal battery capacity / system voltage | 400 Ah / 48 V |
| Possibility of operation in UPS mode | Yes |
| Built-in charger | 60 А |
| Solar module power | 3000W |
| 220 V output signal form | pure sine wave |
Equipment composition
| MC-4 connectors | 4 sets |
|---|---|
| MC-4 Y connectors | 2 sets |
| Solar module 24V/250W mono | 12 pc. |
| GEL battery 12V 200 Ah | 8 pc. |
| Mounting solar modules on a flat surface | 1 set |
| Inverter VM 5000-48 (MPPT), 5000VA/5000W (Voltronic Power) | 1 pc. |
| Reinforced battery rack with crossbars for 8 batteries | 1 pc. |
