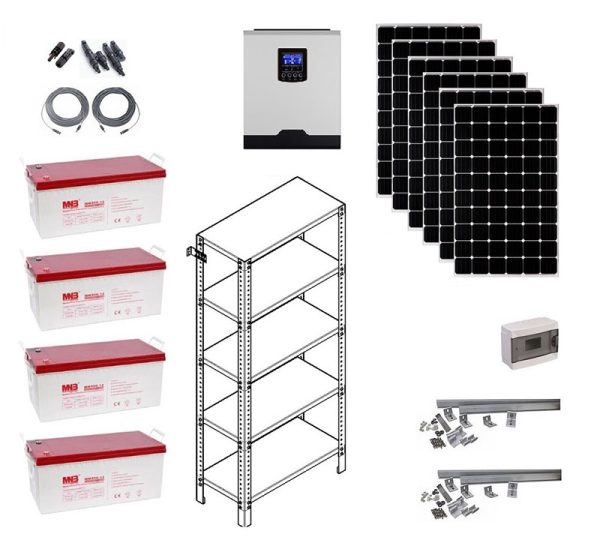

Solar power plant 5 kW / 9600 Wh / 1500 W
- Inverter VM 5000-48 (MPPT), 5000VA/5000W (Voltronic Power): 1 pc.
- Solar module 24V/250W mono: 6 pc.
- GEL battery 12V 200 Ah: 4 pc.
- Mounting solar modules on a flat surface: 1 set
- MC-4 connectors: 2 sets
- MC-4 Y connectors: 1 set
Autonomous solar power plants are designed to supply energy to private homes and other facilities where there is no connection to the grid or it is unreasonably expensive.
Can be powered:
- Lighting system
- Refrigerator
- Water supply pump (up to 2000 W)
- Septic tank
- Washing machine
- Vacuum cleaner
- Electric kettle
- Microwave oven
- TV
- Satellite TV
- Laptop
- Phone and tablet chargers
- Chargers for cordless tools
Read more
Technical specifications
| Inverter power nominal/peak | 5000 W / 10000 W |
|---|---|
| Battery type | GEL, AGM maintenance-free |
| Battery power reserve | 9600 Wh |
| Nominal battery capacity / system voltage | 200 Ah / 48 V |
| Possibility of operation in UPS mode | Yes |
| Built-in charger | 60 А |
| Solar module power | 1500W |
| 220 V output signal form | pure sine wave |
Equipment composition
| MC-4 connectors | 2 sets |
|---|---|
| MC-4 Y connectors | 1 set |
| Solar module 24V/250W mono | 6 pc. |
| GEL battery 12V 200 Ah | 4 pc. |
| Mounting solar modules on a flat surface | 1 set |
| Inverter VM 5000-48 (MPPT), 5000VA/5000W (Voltronic Power) | 1 pc. |
